Quick Details

Type: Valves, Manual Type Application: Agricultural machines,Log splitters,Construction machinery,Lift trucks
Pressure: 31MPa Weight: 5.9+2.6(N-1)Kg
Material: Cast Iron Flow: 100L/min
Spool Stroke: 7+7mm Anti Rusty: Yes, 72 hours Salty Spraying Testing
Oil Way: Closed Center, Open Center

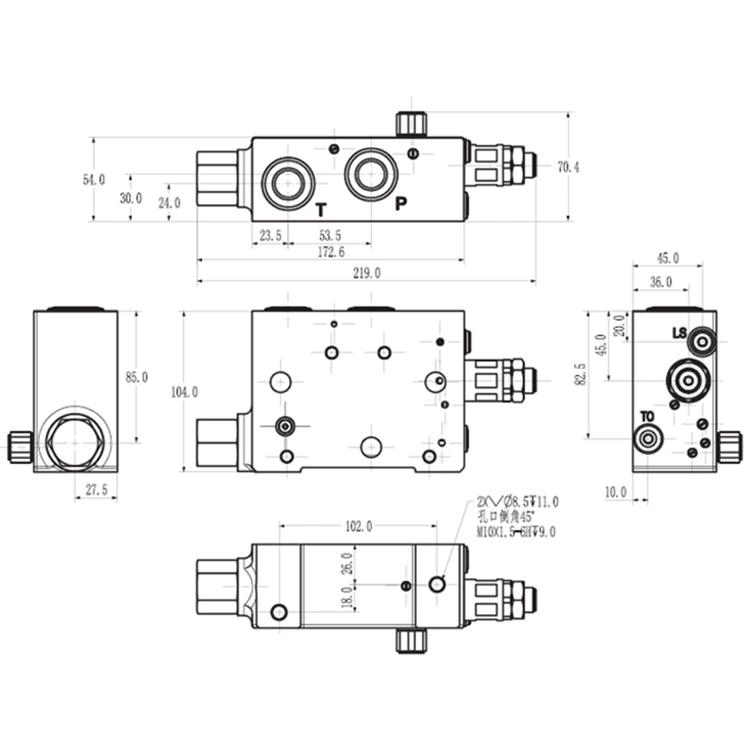

GBV100 Proportional valve is a load sensed and post pressure compensated proportional stackable valve. For post pressure compensation valve, it can distribute flow proportionally for each working function. Because of the pressure compensation, working flow is independent with load. All the proportional valves in this series have been load sensed, and spring centered. We can choose different plugin unit for the main valve body to accomplish different function. This series valve is building with modular design concept, system designer can choose different module to accomplish various complicate system design. Main valve spool can provide excellent flow characteristics and low flow force. fork lift crane excavating machine Crawler Loader hydraulic multi-way valves directional control valve for snow :

ITEMS SPECIFICATION
PRODUCT CODE GBV100 series
FLOW RATE 40LPM
SPOOLS 1-3SPOOLS or customized
CONTROL WAY MANUAL , PNEUMATIC, ELECTRIC&PNEUMATIC, ELECTRIC&HYDRAULIC, CABLE CONTROL, JOYSTICK
Spring side Detent, Spring, Microswitch, cable
Spool Function Motor spool, cylinder spool, single acting spool, floating spool
Spool Treatment Heated Treatment with HRC45
Casting Material HT300
Delivery Time 20-40days according to the quantity.
Nearest Port Shanghai, Ningbo port
Applications Agriculture machines, construction machines, forest machines, etc.
Strongest The spools can be interchangable.
Spare parts spools, caps, handle levers, pneumatic, carry over connector
and ect parts are available to be provides separately.
