  • T Synchronous Belts
  • Arc Synchronous Belt

Type

MXL XXL XL L H XH XXH T2.5 T5 T10 T20 AT5 AT10 AT20 HTD：2M 3M 5M 8M 14M 20M STS：S2M S3M S4.5M S5M S8M S14M RPP：RP2M RP3M RP5M RP8M RP14M

Supply characteristics

1、Company leading products, all kinds of mold more than 3 thousand 2、Can be cut according to customer requirements or provide die 3、Can reinforce static, temperature resistance, low temperature resistance performance 4、No minimum quantity requirements of conventional products

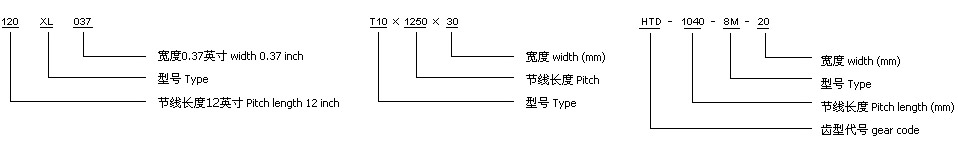

Specification type mark

Material selection and product characteristics

The belt body used Japanese imports of high-quality synthetic chloroprene rubber, and mixed with a variety of different uses of rubber materials; skeleton materials for high quality glass fiber cord imported from Japan; with tooth surface with high elastic nylon cloth 66 protection. The synchronous belt is a new type of synchronous transmission, which is used to transmit power between the belt and the teeth. Moreover, the products do not need lubrication, no slip, no pollution, less noise; the transmission efficiency is more than 98%, the ratio range of up to 1:10, allowing the line speed of up to 50m/s, the transmission rate from several hundred watts to hundreds of kilowatts, also suitable for the multi axis drive. Dynamic performance and anti cracking performance of Rao products are good, ozone also has excellent performance, aging resistance, heat resistance, wear resistance and other properties.

Related matters needing attention

1）Note that the product surface is clean, the belt should not be distorted, with teeth to be full.

2）Products in the transport, installation and other processes, no twists and turns, otherwise it will damage the skeleton material (glass fiber), the impact of the strength of the belt.

3）Products in the installation and use of the process, shall not scratch the belt, not with chemicals (especially strong oxidizing acid), try to avoid contact with oil and water for a long time, so as not to affect the life of the product.

4）When the product is replaced, the tension of the belt must be reduced to the minimum, so that it can be taken out. It is strictly prohibited to use the non professional tools to pry down under the condition of high tension.
