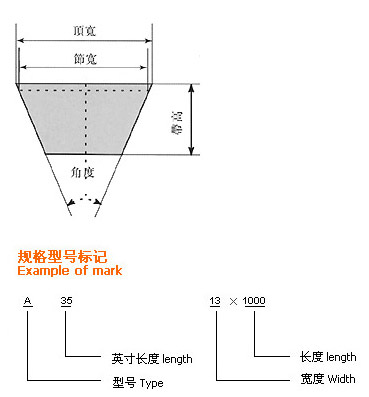

Product specifications and parameters:

Unit：（mm）

Type

Top Width

Pitch Width

Height

Angle

Common V belt

Y

6

5.3

4

40

z

10

8.5

6

40

A

13

11

8

40

B

17

14

11

40

C

22

19

14

40

D

32

27

19

40

E

38

32

23

40

Narrow V belt

SPZ

10

8

8

40

SPA

13

11

10

40

SPB

17

14

14

40

SPC

22

19

18

40

3V(9N)

9.5

8.5

8

40

5V(15N)

16

14.3

13.5

40

8V(25N)

25.4

23.7

23

40

Materials and characteristics:

Belt uses the Japanese imported high quality synthetic neoprene, and matches in a variety of different USES of rubber materials; Skeleton material for high quality polyester hard cord; Take back attached to different kinds of cloth to do protection.
And Raw-edged V belt compared with wrapped V belt, the bottom profile can reduce quantity of heat accumulation or stress concentration, prolong the belt life, running at high speed in only a small change.
Joint v belt has good integrity, with various stress uniform smooth operation load transmission high use to jitter and turn with suitable for pulsating load and impact vibration.

Precautions:
