The toothed trimmed V-belt is a combination of traditional. V-belt load-bearing capacity and toothed timing belt. High-performance transmission belts with precise transmission characteristics and significantly improved tooth profile. Heat dissipation flexibility and transmission efficiency. The following is from the structural characteristics, material technology, comprehensive analysis of performance advantages, application scenarios and development trends: structural characteristics and technical parameters; The toothed trimmed V-belt is made of a composite of multiple layers of functional materials. Typical structures include: Top cloth layer: wear-resistant covering material (such as polyester-cotton wide-angle cloth), protective belt body. Strength layer: aramid or polyester cord that provides tensile strength and prevents elongation (The tensile resistance of aramid wire rope is increased by more than 40%). Buffer layer: Ethylene propylene diene monomer (EPDM) or neoprene to absorb vibrations and enhance flexibility.-Toothed compression layer: The primer is molded into a toothed structure, and the key parameters directly affect the transmission performance.

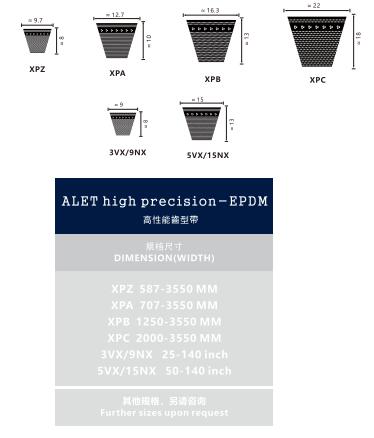

Cut edges with toothed high-speed V-belts

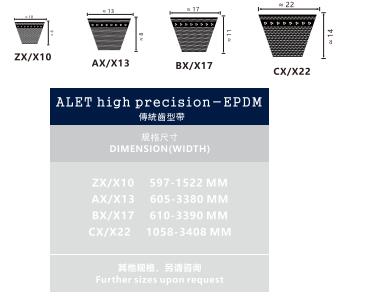

The cut edge has a toothed traditional V-belt
